E-Chronos M-Fly

The M-Fly gives you a maximum functions within it's compact size

Long Range
Up to 600 m
Lightweight
and compact
Robust / Reliability
Glass fiber inside
Customization
Do what you need
Ergonomics
Guided by customers
Experience
Growing network
Learn More

Let's get into it !

By answering on some questions, we will find a E-Chrons M-Fly that fits your needs.

Start the short survey
PRODUCT

The M-fly is a two-handed transmitter that can control different machines. It is also fully customisable if you want options other than our catalog models.

Learn More
COMPATIBILITY

All E-Chronos M-Fly transmitters are compatible with E-Chronos receivers. If physical receiver needed, make sure you have enough output and pins on the receiver.

Learn More
PHYSICAL

215 x 141 x 143 millimetres
700 grammes
IP65
Free band : 868MHz


Learn More
Rescue truck
Hydraulic Truck Crane
Cleaning pipe truck
Agriculture machine
Stone breaker
Tower crane
Forest hydraulic crane
Concrete Pump truck
Railway ballast trailer
overhead crane
Forest telepheric
Industrial Garden cut machine

Fast delivery products

From all our possibilites, we can ship all 3 "E-Chronos M-Fly" configuration fast.

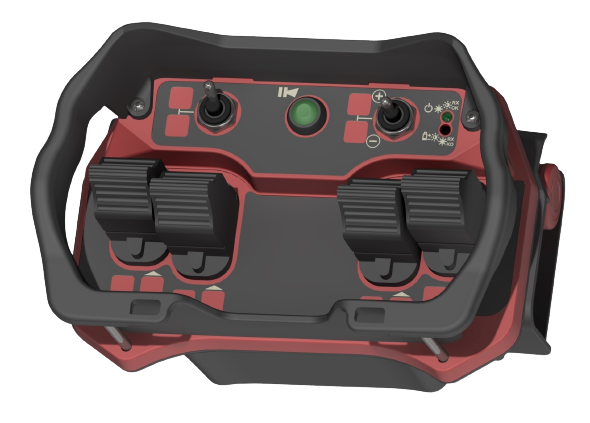

M-Fly : A-D-P-R-L
M-Fly 4L

Main : 4 Linear joysticks
Top : 1xON-ON / 1xMOM / 1xStart
Left : None
Right : EStop
>30h Battery life

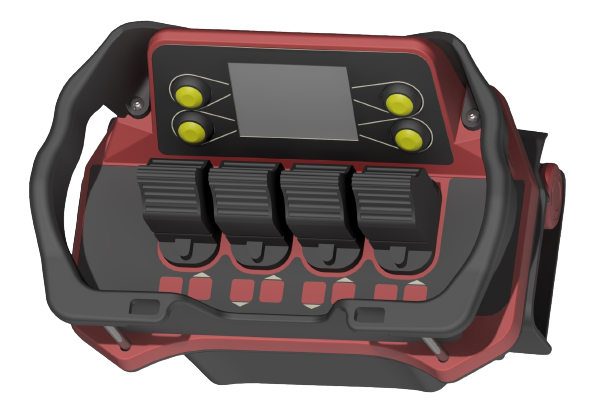

M-Fly: A-F-Q-R-L
M-Fly 4L Screen

Main : 4 linear joysticks
Top : 1xScreen / 4xPushs
Left : 2xMOM / 2xPushs / Start
Right : EStop
>9h Battery life

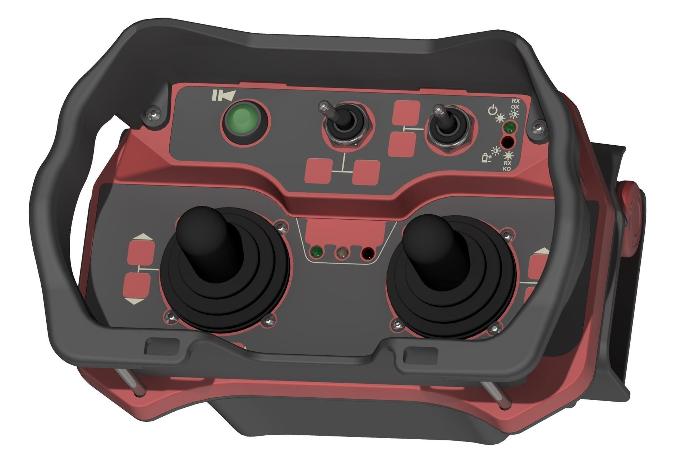

M-Fly: Cc-E-Q-R-L
M-Fly Tower Crane

Main : 2x2axis joysticks
Top : 1xStart / 1xON-OFF-ON / 1xMOM
Left : 2xMOM / 2xPushs
Right : Estop
>30h Battery life

Range

The best range,
feedback included

Standard

Articles in stock, ready to be delivered. See above

1 battery

Our complete range uses
only one type of battery.

Pairing

Easily and without a computer, pair two devices together.

Dip Sw

Configure easily and without a computer, some parameters

Robust

Our mechanical housing makes the radio remote control robust.

Other products available

Here you have a complet view of what we can do.

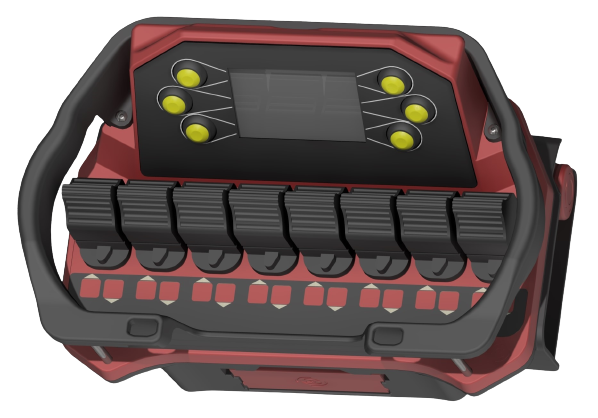

X-Fly

  •  9+ axis
  •  14+ toggles
  •  Screen
  •  Range
Visit the X-Fly page

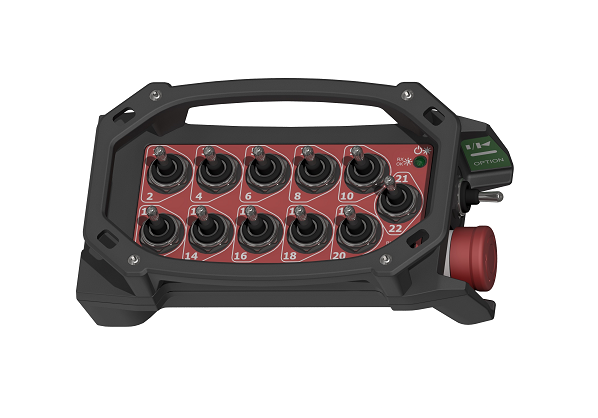

FireFly

  • Joysticks
  •  11+ Toggles
  •  Screen
  • Range
Visit the Firefly page

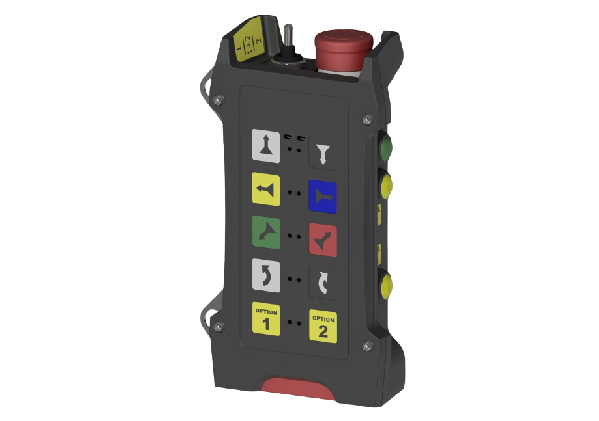

Push

  • Joysticks
  •  11+ Push
  •  Screen
  • Range
Visit the Firefly page

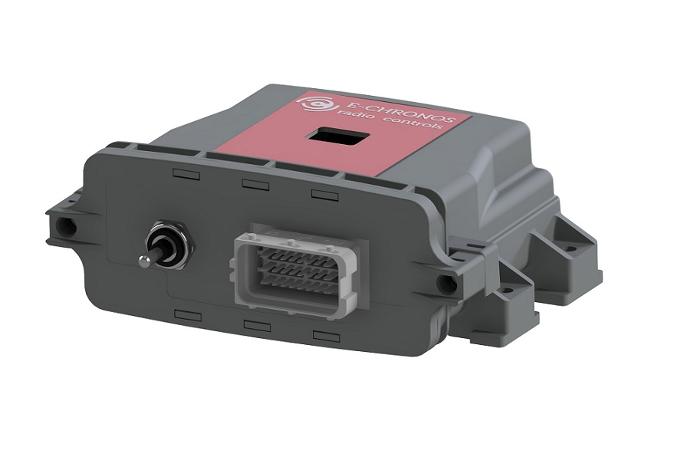

Receivers

  • Rxps (can + 16 outputs)
  •  RXm (can + 24 outputs)
  •  RXt (can + 48 outputs)

Visit the Receiver page

FAQ

I want a transmitter from your catalog, where I should go ?

By clicking this link, you will be able to predefine our catalog and get intouch with us.

Just enter in contact with us. Via an email or in the contact form. (Contact form is preferred)

We will setup a phone or video call, together we will fill a E-Spec project together for a personalised quote.

Icons are loaded via our software E-Drop. You will get an access and basically, you need to use Microsoft Paint or any other tool to create the icons. Once the icon ready add it on the transmitter project.

Once your project is ready to be ordered more, you will need to "merge" your modification in production. And as easy as this, the new update will be available at E-Chronos factory. Everything is integrated.

No problem via our software E-Drop. Once the access is done, you can update the logic yourself, we also can do it for you depending on your load and how big is the customisation.

For sure, one day or another, you will need assistance. Depending on your situation, we can provide you local support, travel to you or send the system (TX and RX) back to us. Contact us and we will find the best way for you to be satisfayed.
